Focus on: The Alpine-Renault A442

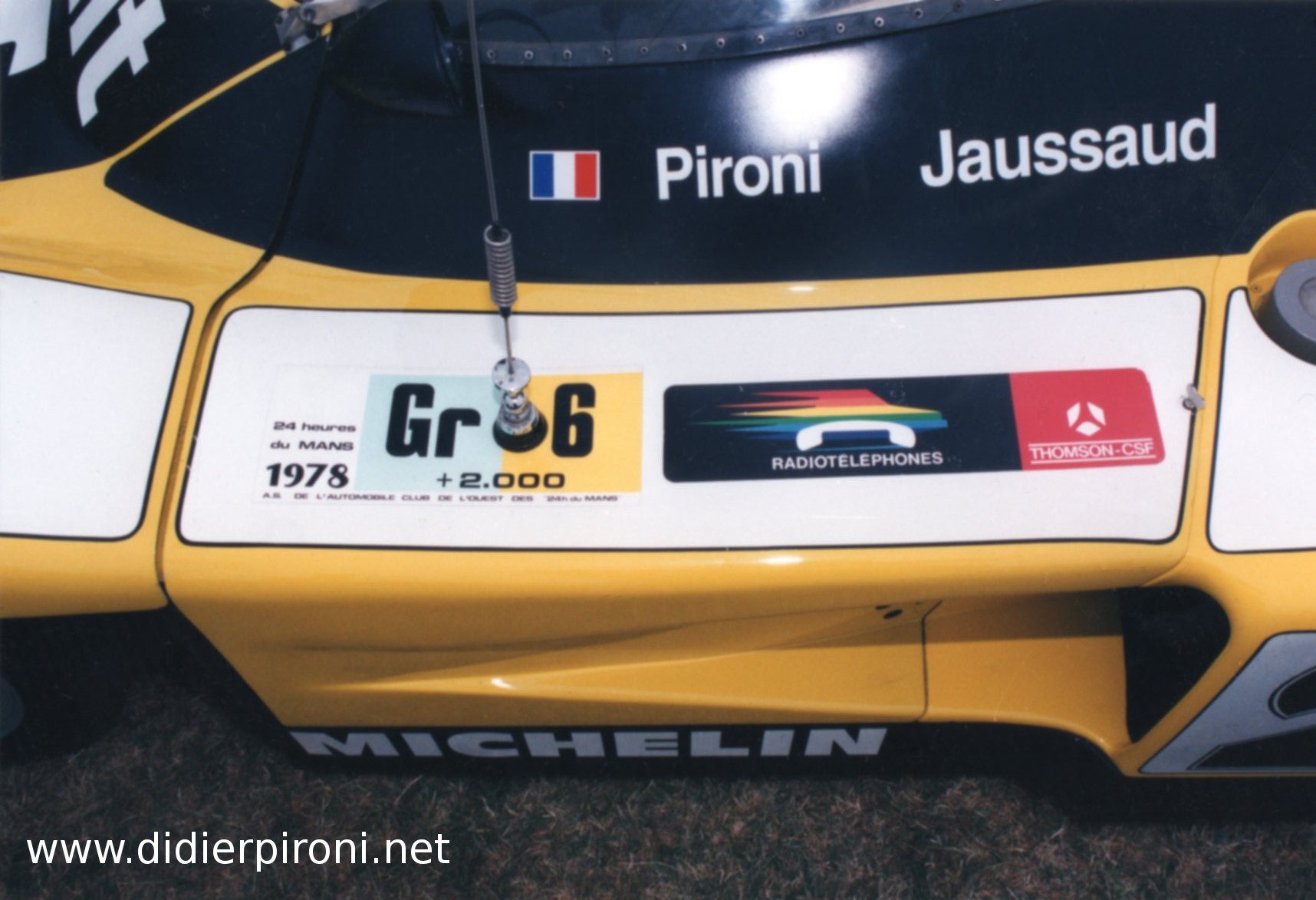

The pictures have been taken at the Goodwood Festivals of Speed in 1999 and 2003





Renault had bought Alpine in early 1976, inheriting Alpine's sports prototype program. The A442 was a direct evolution of the successful Alpine A440 and title-winning A441 models.

Evolution of design




However, unlike the previous cars, the A442's 2.0L Renault-Gordini powerplant boasted a large Garrett turbocharger, pushing power output to 490 bhp (365 kW). Over the next three years this would increase to well over 500 bhp (370 kW), with the A443's 2.2L unit developing 520 bhp (388 kW). In common with the earlier cars, the engine was suspended inside a relatively small steel spaceframe chassis, which was then clothed in a much longer glassfibre body. The extra length of the body was mostly to be found in the tail section, to improve high-speed aerodynamic efficiency, and hence top speed on the long Mulsanne straight at Circuit de la Sarthe. The bodywork was a conventional open two-seater arrangement. Designed as a "hare", to stretch their Porsche 936 rivals to breaking point, the A443 also incorporated a slightly longer wheelbase.



Following wind tunnel testing during the autumn and winter of 1977, the A442B and A443 were introduced in 1978 each sporting an acrylic glass "bubble" partial roof, resulting in an additional 8 km/h (5 mph) in top speed at la Sarthe, but reducing visibility from the driving seat. However, during practice for the 1978 Le Mans race, A443 drivers Patrick Depailler and Jean-Pierre Jabouille complained that the bubble made them feel claustrophobic and trapped engine heat inside the cockpit, making driving conditions intolerable. Therefore, only the A442B ever competed with the bubble in place.












By 1978, Gérard Larrousse had moved up from works driver to manage the Renault Sport team. He laid out the team's priorities: win at Le Mans, then focus all attention on repeating the success in Formula One.

Renault ploughed a huge budget into developing the A442 into a Le Mans winner. Many hours were spent in testing, particularly using long airport runways to simulate the mechanical and aerodynamic stresses induced on the long, fast Mulsanne straight. In addition, Renault's engine department went to work on squeezing as much power out of the five year old powerplant as was possible. Capacity was upped to 2138 cc, just short of the theoretical 2142 cc limit for turbocharged cars, and this revamped engine was installed into the new chassis, lengthened by 16cm, becoming the A443. In full qualifying trim, with the bubble roof, the A443 achieved a top speed of 236 mph (380 km/h) on the Mulsanne straight, making it the fastest car ever produced by Renault, a record which still stands today and includes all of Renault's F1 entries.

Race history

The A442 made its competition debut in March 1975, at the Mugello 1000 km, with Jabouille and Larrousse, although other sources report the car to be an A441 with the new turbo engine. Despite the relatively underdeveloped turbo addition to the Renault engine, the car lasted long enough for the team to take a surprise win in its very first race. In the 1976 Nürburgring 300 km two Renaults qualified in the front row, only to crash out in the second corner. Subsequent repeated mechanical failures meant that going into the 1976 24 Hours of Le Mans the team had failed to win another race. That run of form was not to change, and the single car entered dropped out with engine failure before half of the 24 hours had elapsed.

For the Renault management, success at Le Mans was a huge prestige issue. For the 1977 race the Renault Sport
works team fielded three cars, drafted in endurance specialist Derek Bell, and were supported by an additional, privately entered A442. In the intervening period between the two Le Mans starts, the Renault Alpines had taken second and third places in the 500 km ACF race at Dijon-Prenois, as well as second place at the high-speed 4h Monza round. Expectation and publicity levels were high. It was therefore something of an embarrassment when not one of the four cars reached the finishing flag. Renault's yellow and black liveried squad did not compare favourably with the white Martini Racing Porsche 936 and Porsche 935. In both World Championship series of 1976, these reliable, fast cars scored repeated wins.

At the 1978 24 Hours of Le Mans, their huge development program paid off. Once again, the works team entered three cars: an old A442, renamed A442A; the bubble-canopied A442B; and the A443. A second A442A was entered by Ecurie Calberson. The work carried out since the 1977 race meant that, for once, Renault was on a par with the dominant Porsche 936 turbo cars, which had been improved, and the two manufacturers shared the first four rows of the grid equally. The Porsche 935/78 Moby Dick, which due to its aerodynamic layout and 800 horsepower achieved over 360 km/h on the straight, qualified third, behind the new 936 and the A443.

From the start, the A443 was the class of the field, lapping in under 3 minutes 40 seconds,[3] while the Porsches had planned to do only 3:40 to 3:50. Jabouille took fastest lap at 3:34, which was six seconds slower than in qualifying, before the A443's engine finally broke in the 18th hour. This was the second Renault retirement, after the Bell/Jarier A442A works car had suffered transmission failure at the half-way point.

However, fortunately for Renault, Pironi and Jaussaud in the A442B were well placed to inherit the lead. Two 936s had technical problems, the third crashed at 11 am. The pairing held on to the lead for the final few hours, finishing four laps ahead of the second-placed Porsche. The privateer A442A also finished well, taking fourth place behind the two remaining 936s. After the final flag Pironi was too exhausted to climb up to the podium, where Jaussaud took the trophy alone.

The text of this article are based on the Wikipedia article about the A442.
